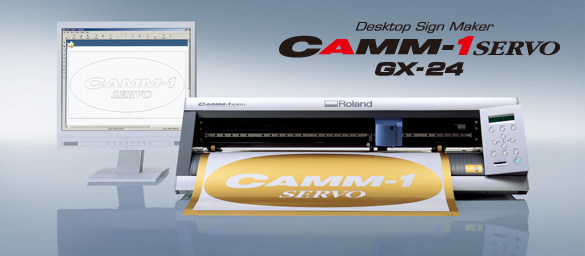

Mesin Cutting Sticker Roland Plotter GX-24 58cm
Code : MRCS700
Deskripsi :
Model GX-24
Driving method Digital control servo motor
Cutting method Media-moving method
Loadable material width 50 to 700 mm (2 to 27-1/2 in.)
Maximum cutting area Width: 584 mm (22-15/16 in.)
Length: 24998 mm (984-1/8 in.)
Acceptable tool Special blade for CAMM-1 series
Cutting speed 10 to 500 mm/s (all directions)
Blade force 30 to 250 gf
Mechanical resolution 0.0125 mm/step (0.000492 in./step)
Software resolution 0.025 mm/step (0.000984 in./step)
Distance accuracy *1 Error of less than ±0.2 % of distance traveled, or ±0.1 mm, whichever is greater
Repetition accuracy *1*2 ±0.1 mm or less
Alignment accuracy for printing and cutting when loading printed material *1*3 ±1 mm or less for movement distance of 210 mm or less in material-feed direction and movement distance of 170 mm or less in width direction (Excluding effects of printer and/or material)
Interface USB interface (compliant with Universal Serial Bus Specification Revision 1.1), Serial (RS-232C)
Replot memory 800 Kbyte
Instruction system CAMM-GL III
Power supply Dedicated AC adapter
Input: AC 100 to 240 V ±10 % 50/60 Hz 1.7 A
Output: DC 24 V, 2.8 A
Power consumption Approx. 30 W (including AC adapter)
Acoustic noise level During operation 70 dB (A) or less (according to ISO 7779)
During standby 40 dB (A) or less (according to ISO 7779)
Dimensions 855 (W) x 315 (D) x 240 (H) mm (33-11/16 (W) x 12-3/8 (D) x 9-7/16 (H) in.)
Weight 16 kg (35 lb.)
Environment Temperature: 5 to 40°C (41 to 104°F), humidity: 35 to 80 % (no condensation)
Included items AC adapter, power cord, blade, blade holder, separating knife, roller base, tweezers, test-use material, application tape, USB cable, CD-ROM, user' manual

*1 According to material and cutting conditions as specified by Roland DG Corp. (using the PNS-24 stand, sold separately).
*2 Excluding material expansion and contraction. Provided that media length is under 3000 mm.
*3 Using Roland CutStudio, a laser or inkjet printer having a resolution of 720 dpi or better. Excluding glossy or laminated material. Excluding effects of printing distortion due to printer precision and effects of material expansion, contraction, or warping. Depending on the ink (black) employed by the printer used, correct sensing may not be possible.

Included Software Roland CutStudio Roland CutStudio Plug-in for Adobe® Illustrator® Roland CutStudio Plug-in for CorelDRAW®
OS/Application Software Windows® 7(32/64-bit)
Windows Vista® Home Premium (32-bit) /Business (32/64-bit); Windows®XP Home Edition/Professional (32/64-bit)
Adobe® Illustrator® CS2/CS3/CS4/CS5 for Windows® and MAC OS*1 CorelDRAW® 12/X3/X4/X5 for Windows®*1
Rp 24.500.000,-



Punya pertanyaan seputar produk ini?
Hubungi via YM

Atau hubungi
0271 719718,715524,725062
